Tester 24 fire TSC-24/A

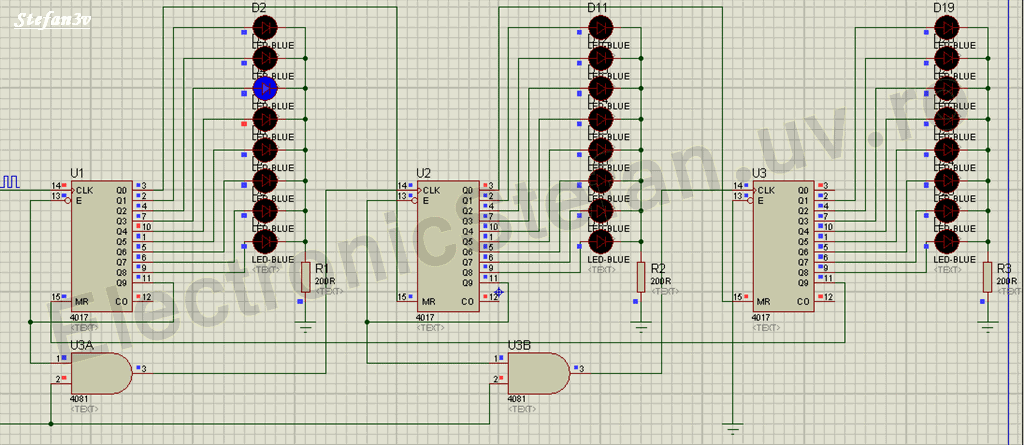

Schema electronica:

Obs: la pinul 14 al CI U1 trebuie aplicat un semnal de tact de ~10Hz altfel montajul nu functioneaza, semnal se obtine cu un timer NE555 cu dimensionarea corecta a componentelor RC http://freespace.virgin.net/matt.waite/resource/handy/pinouts/555/

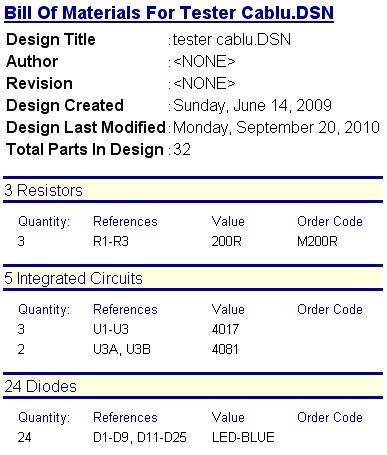

Bill Of Materials For tester cablu
